OSG

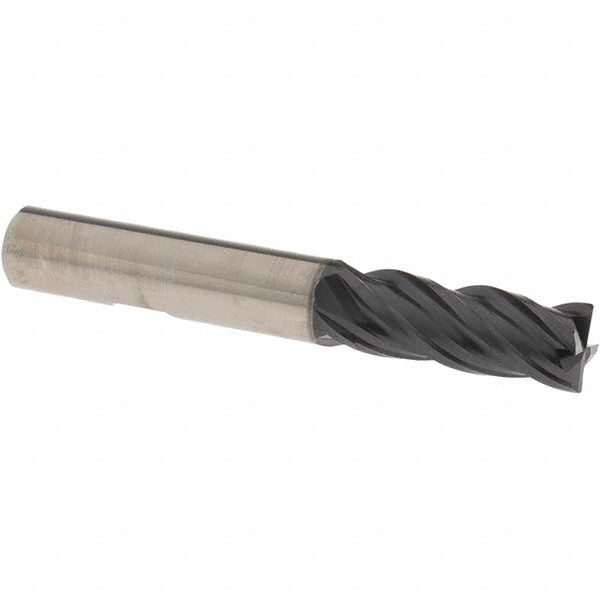

1/2" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG434-5003

MFR# VG434-5003Series VG434

$94.15List $120.76 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG VG434-5003 is a 1/2 4-flute Solid Carbide corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/4 length of cut, 3-1/2 overall length. Series VG434.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleMedium

Length of cut in1-1/4

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance0.0000 to -0.0015 in

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
