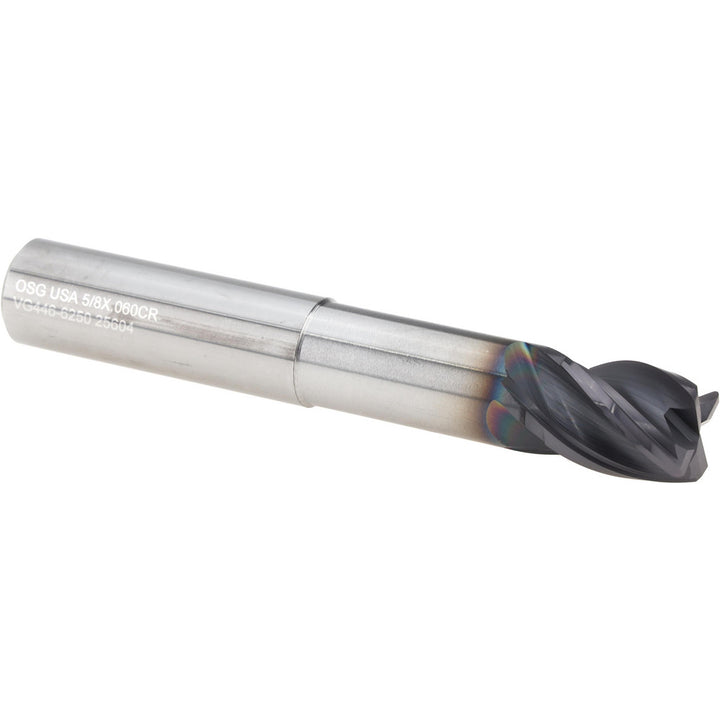

5/8" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG446-6250

OSG

5/8" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - OSG VG446-6250

MFR# VG446-6250Series VG446

$227.71List $292.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG VG446-6250 is a 5/8 4-flute Solid Carbide corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/4 length of cut, 4-1/8 overall length. Series VG446.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/4
Length typeStub
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance0.0000/-0.0015 in
Neck diameter0.5880
Number of flutes4
Overall length in4-1/8
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in2-1/4
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
