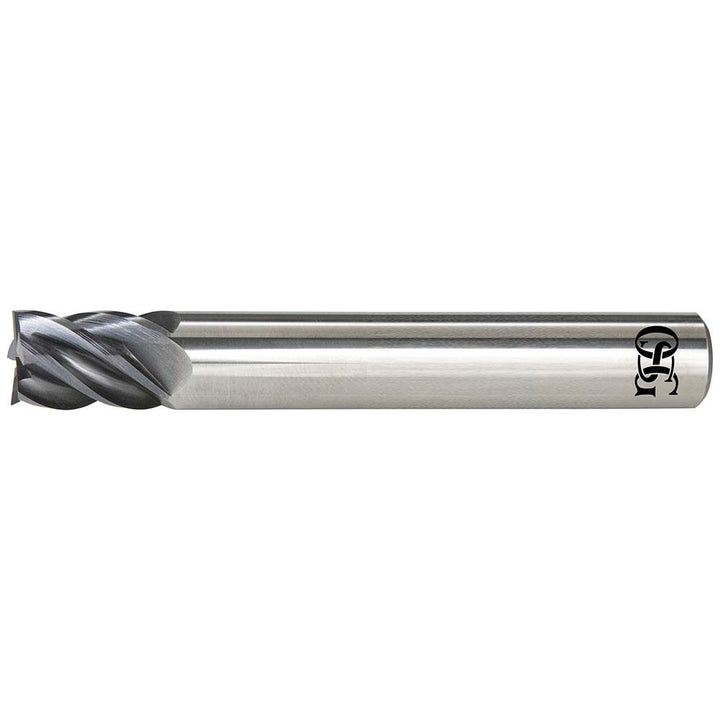

0.2500" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1031

OSG

0.2500" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-1031

MFR# VGM5-1031Series VGM5-LN

$48.61List $61.26 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG VGM5-1031 is a 0.2500 5-flute Solid Carbide (Micrograin) single end mill with a EXO finish for longer tool life. 5/16 length of cut. Series VGM5-LN.

Specifications

CentercuttingYes
Coating finishEXO
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in5/16
Length typeRegular
Material gradeMicrograin
Mill diameter0.2500
Mill diameter frac in1/4
Number of flutes5
Shank diameter in1/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
