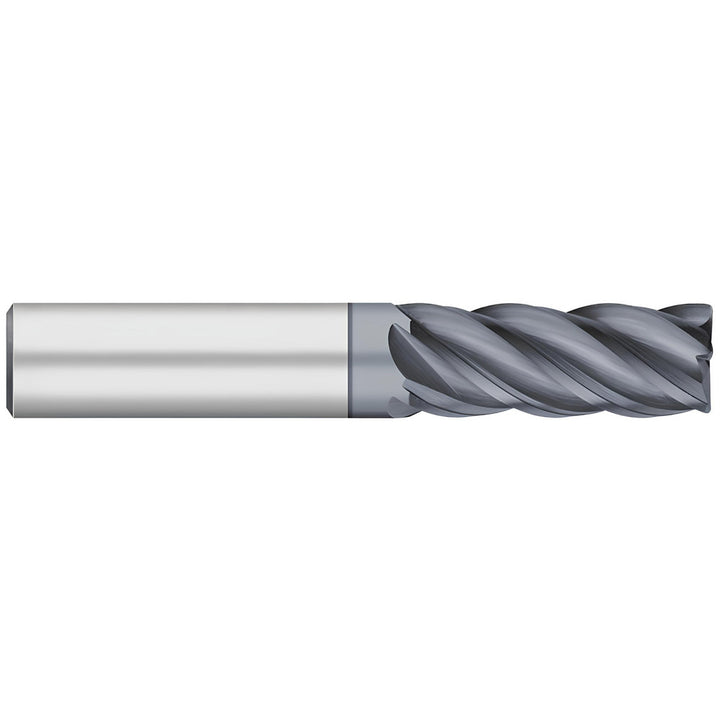

1/4" 5-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC26416

MFR# TC26416Series TC

$35.55List $45.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingALCRO-MAX

Description

The Titan USA TC26416 is a 1/4 5-flute Solid Carbide corner radius end mill with a ALCRO-MAX finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 3/4 length of cut, 2-1/2 overall length. Series TC.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishALCRO-MAX

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in3/4

Length typeRegular

Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes5

Overall length in2-1/2

PitchNormal

Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron

Reach length in3/4

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
