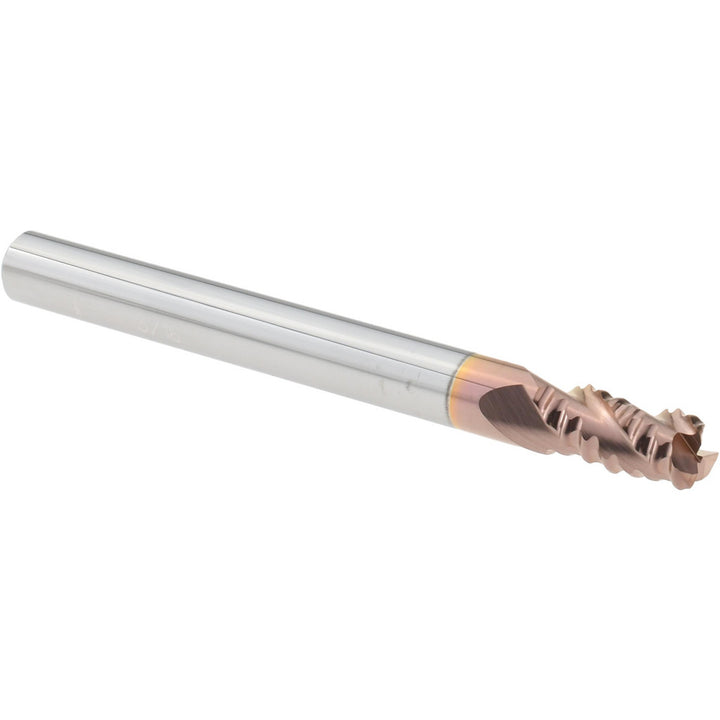

0.1875" 3-Flute Solid Carbide Roughing End Mill, TiCN - ProMax 101-01222

ProMax

0.1875" 3-Flute Solid Carbide Roughing End Mill, TiCN - ProMax 101-01222

MFR# 101-01222Series 101

$47.27List $60.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 101-01222 is a 0.1875 3-flute Solid Carbide (Micrograin) roughing end mill with a TiCN finish for longer tool life. Series 101.

Specifications

CentercuttingYes
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix styleHigh
Length of cut0.3750
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.1875
Mill diameter frac in3/16
Mill diameter tolerance+0.000000 to -0.005000 in
Number of flutes3
PitchFine
Shank diameter in3/16
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
