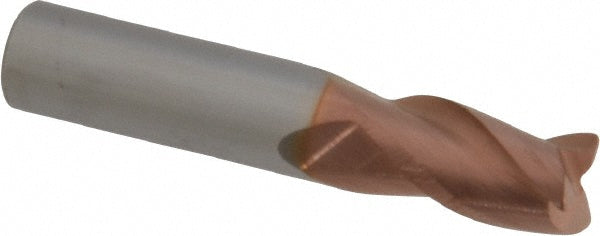

3/8" 3-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 106-02422

ProMax

3/8" 3-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 106-02422

MFR# 106-02422Series 106

$66.70List $82.03 Save 18%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 106-02422 is a 3/8 3-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. 5/8 length of cut, 2 overall length. Series 106.

Specifications

CentercuttingYes
Coating finishTiCN
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in5/8
Material gradeMicrograin
Maximum helix angle35
Mill diameter in3/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes3
Overall length in2
Shank diameter in3/8
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
Variable indexNo
