ProMax

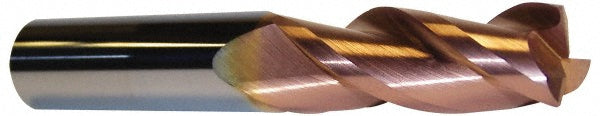

7/16" 3-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 106-02812

MFR# 106-02812Series 106

$70.67List $88.59 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

The ProMax 106-02812 is a 7/16 3-flute Solid Carbide (Micrograin) corner radius end mill with a TiCN finish for longer tool life. 1 length of cut, 2-3/4 overall length. Series 106.

Specifications

CentercuttingYes

Coating finishTiCN

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in1

Material gradeMicrograin

Mill diameter in7/16

Mill diameter tolerance+0.000000 to -0.002000 in

Number of flutes3

Overall length in2-3/4

Shank diameter in7/16

Shank diameter tolerance-0.0001 to -0.0004 in

Single or double endSingle

Variable indexNo
