ProMax

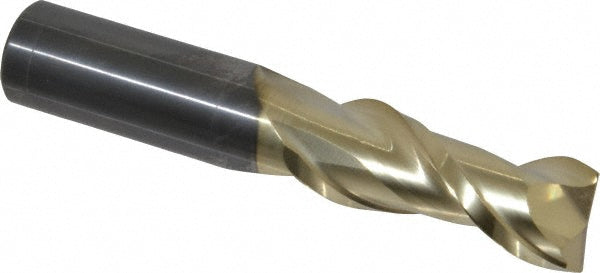

5/8" 2-Flute Solid Carbide Square End Mill, ZrN - ProMax 108-04016
MFR# 108-04016Series 108
$128.19List $164.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 108-04016 is a 5/8 2-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 3-1/2 overall length. Series 108.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-5/8
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3-1/2
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
Variable indexNo
