SGS

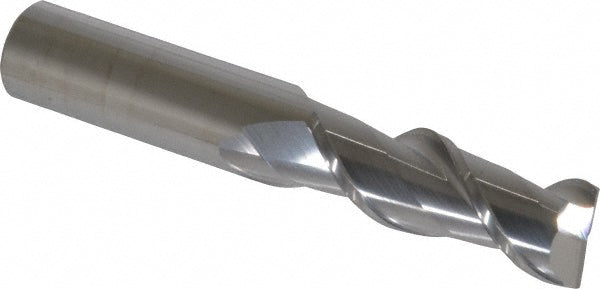

5/8" 2-Flute Solid Carbide Square End Mill - SGS 32043
MFR# 32043Series 44
$331.90List $418.27
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
Description
The SGS 32043 is a 5/8 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 3-3/4 overall length. Series 44.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-5/8
Length typeRegular
Mill diameter in5/8
Mill diameter tolerance+0.00000/-0.00043 in
Number of flutes2
Overall length in3-3/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
