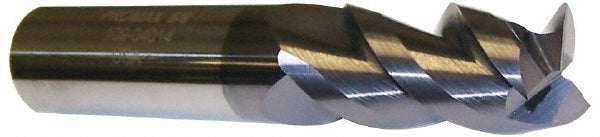

3/8" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-02424

ProMax

3/8" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-02424

MFR# 109-02424Series 109

$43.56List $55.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 109-02424 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 109.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in5/8
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
