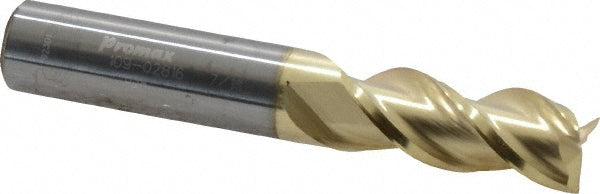

7/16" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-02816

ProMax

7/16" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-02816

MFR# 109-02816Series 109

$64.95List $83.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes3
MaterialSolid Carbide
CoatingZrN

Description

The ProMax 109-02816 is a 7/16 3-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-3/4 overall length. Series 109.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
