ProMax

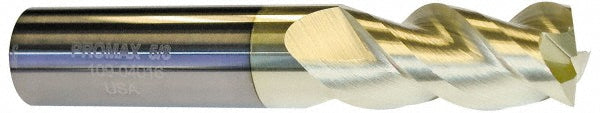

1/2" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-03236
MFR# 109-03236Series 109
$101.63List $128.07
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 109-03236 is a 1/2 3-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 3-1/2 overall length. Series 109.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in3-1/2
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
