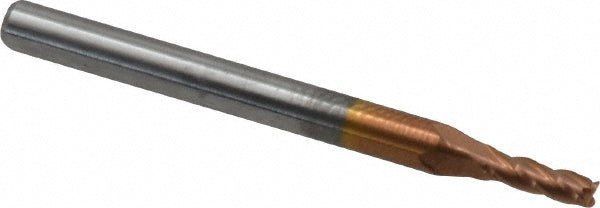

5/64" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-00512

ProMax

5/64" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-00512

MFR# 111-00512Series 111

$15.75List $19.85 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/64
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 111-00512 is a 5/64 4-flute Solid Carbide (Micrograin) square end mill. 1/4 length of cut, 1-1/2 overall length. Series 111.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1/4
Length of cut range0.2000 - 0.3000
Material gradeMicrograin
Mill diameter in5/64
Mill diameter tolerance+0.0000/-0.0005 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
