ProMax

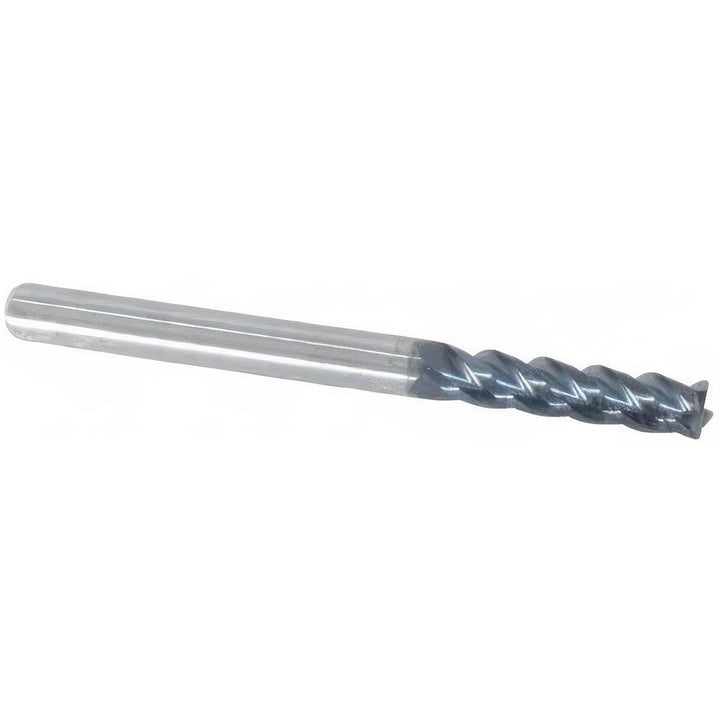

5/64" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-00514

MFR# 111-00514Series 111

$13.73List $17.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/64

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 111-00514 is a 5/64 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for stainless steel, high-temp alloy. 1/4 length of cut, 1-1/2 overall length. Series 111.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut in1/4

Material gradeMicrograin

Mill diameter in5/64

Mill diameter tolerance-0.0020 to +0.0000 in

Number of flutes4

Overall length in1-1/2

Primary workpiece materialStainless Steel; High-Temp Alloy

Shank diameter in1/8

Shank diameter tolerance+0.0001/-0.004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
