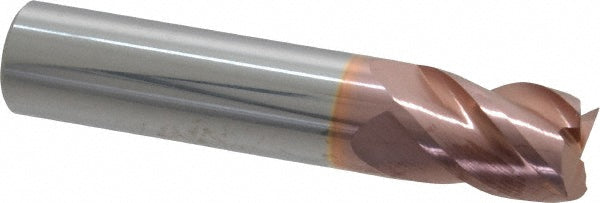

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-03222

ProMax

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-03222

MFR# 111-03222Series 111

$79.72List $100.47 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 111-03222 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 111.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
Variable indexNo
