1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-03224

ProMax

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-03224

MFR# 111-03224Series 111

$69.51List $89.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

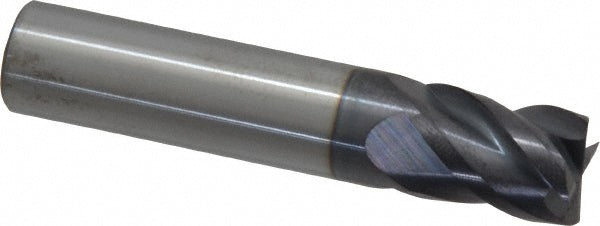

The ProMax 111-03224 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 111.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Titan USA1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC73952 $69.73 Hertel0.5" 4-Flute Solid Carbide Roughing End Mill, TiCN - Hertel C430S5000-C4 $177.88 Kennametal1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4079279 $146.62 Kennametal1/2" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4071902 $170.65
