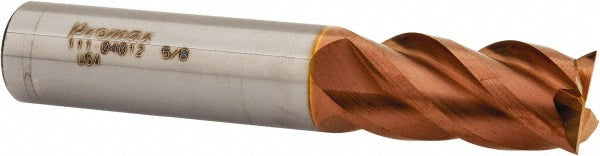

5/8" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-04012

ProMax

5/8" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-04012

MFR# 111-04012Series 111

$119.52List $153.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 111-04012 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 111.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
