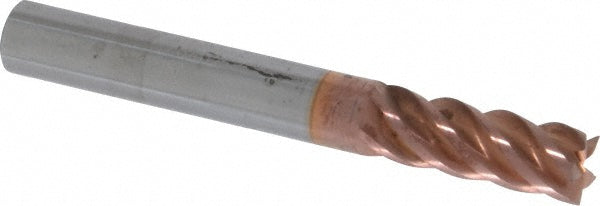

5/16" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-02012

ProMax

5/16" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-02012

MFR# 112-02012Series 112

$51.95List $66.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes5
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 112-02012 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 112.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
Variable indexNo
