Widia

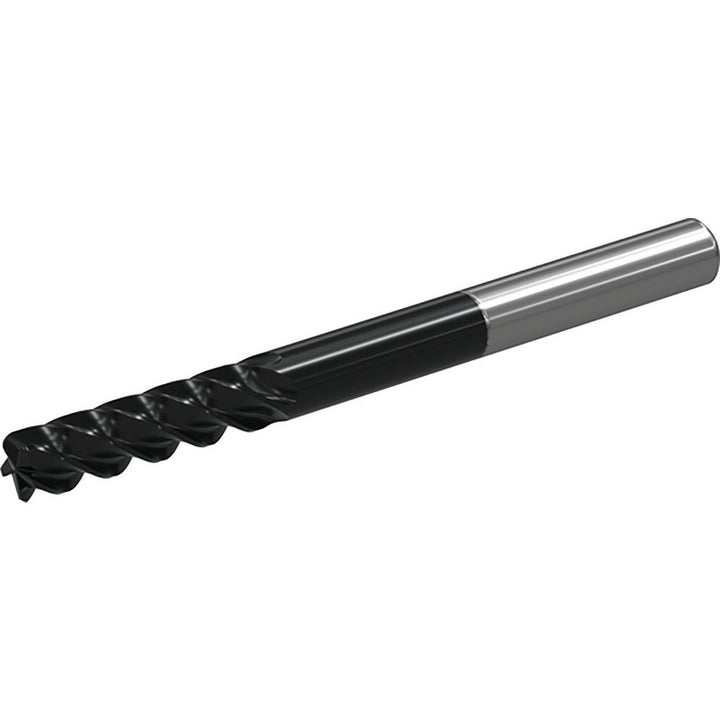

5/16" 5-Flute Solid Carbide Corner Radius End Mill, WU20PE - Widia 7008504

MFR# 7008504Cat# W501E08004RGT WU20PESeries W501

$44.35List $56.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingWU20PE

Description

The Widia 7008504 is a 5/16 5-flute Solid Carbide corner radius end mill with a WU20PE finish for longer tool life. Suited for steel, stainless steel, cast iron. 3/4 length of cut, 2-1/2 overall length. Series W501.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWU20PE

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut in3/4

Length typeStub

Manufacturers catalog numberW501E08004RGT WU20PE

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in5/16

Number of flutes5

Overall length in2-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Secondary workpiece materialHigh Temperature Alloy; Hard Material

Shank diameter in5/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
