1/2" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-03212

ProMax

1/2" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-03212

MFR# 112-03212Series 112

$81.25List $104.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingTiCN

Description

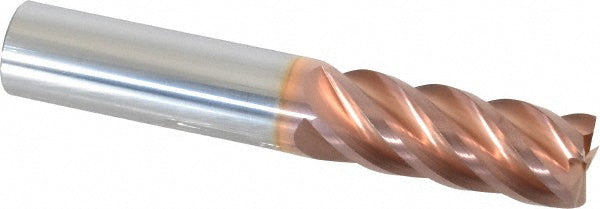

The ProMax 112-03212 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3 overall length. Series 112.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in3
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
