5/16" 4-Flute Solid Carbide Ball End Mill, TiCN - ProMax 116-02012

ProMax

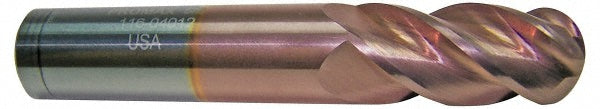

5/16" 4-Flute Solid Carbide Ball End Mill, TiCN - ProMax 116-02012

MFR# 116-02012Series 116

$39.14List $50.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The ProMax 116-02012 is a 5/16 4-flute Solid Carbide (Micrograin) ball end mill with a TiCN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 116.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in3/4
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Cleveland5/16" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33314 $76.15 SGS5/16" 4-Flute Solid Carbide Ball End Mill - SGS 33126 $60.71 OSG5/16" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG 414-3125-BN11 $36.72 SGS5/16" 4-Flute Solid Carbide Ball End Mill, TiCN - SGS 31783 $50.38
