ProMax

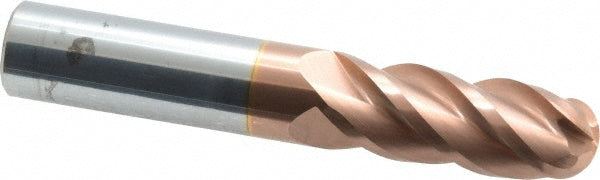

1/2" 4-Flute Solid Carbide Ball End Mill, TiCN - ProMax 116-03212

MFR# 116-03212Series 116

$85.01List $109.03 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The ProMax 116-03212 is a 1/2 4-flute Solid Carbide (Micrograin) ball end mill with a TiCN finish for longer tool life. Suited for high-temperature alloy, stainless steel, steel. 3 overall length. Series 116.

Specifications

ChipbreakerNo

Coating finishTiCN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length typeRegular

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3

Primary workpiece materialHigh-Temperature Alloy; Stainless Steel; Steel

Shank diameter in1/2

Shank diameter tolerance-0.0001/-0.0004 in

Single or double endSingle

Variable helixNo

Variable indexNo
