7/32" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-01424

ProMax

7/32" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-01424

MFR# 155-01424Series 155

$40.11List $50.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

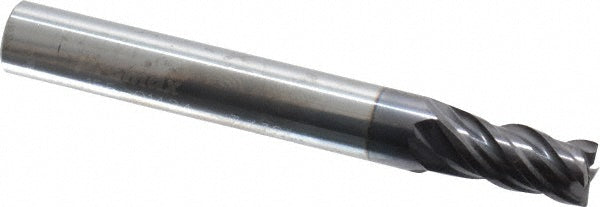

The ProMax 155-01424 is a 7/32 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 155.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in3/8
Length typeStub
Material gradeMicrograin
Mill diameter in7/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
