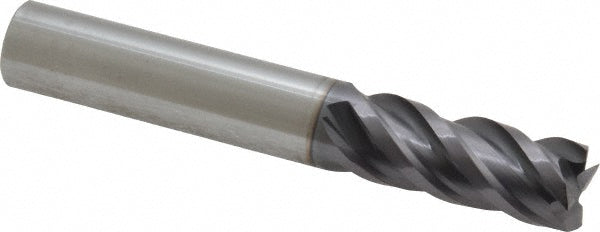

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-02414

ProMax

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-02414

MFR# 155-02414Series 155

$58.49List $75.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 155-02414 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 7/8 length of cut, 2-1/2 overall length. Series 155.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in7/8
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
