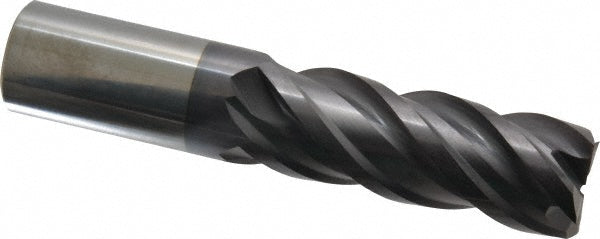

1" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-06434

ProMax

1" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-06434

MFR# 155-06434Series 155

$382.98List $491.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 155-06434 is a 1 4-flute Solid Carbide (Micrograin) square end mill. 2-3/4 length of cut, 5 overall length. Series 155.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in2-3/4
Length typeLong
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in5
Shank diameter in1
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
