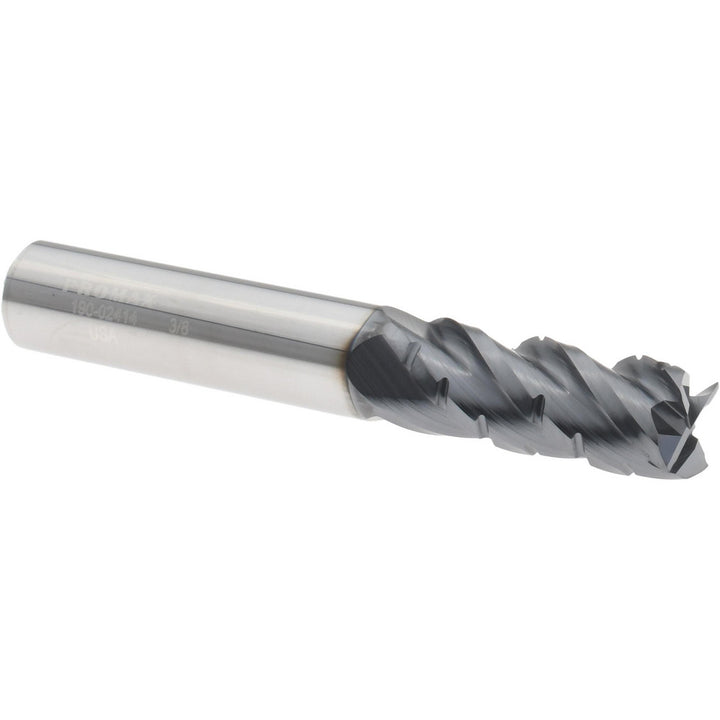

0.3750" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-02414

ProMax

0.3750" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-02414

MFR# 190-02414Series 190

$80.36List $101.27 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 190-02414 is a 0.3750 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 7/8 length of cut. Series 190.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSquare
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in7/8
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.3750
Mill diameter frac in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
