ProMax

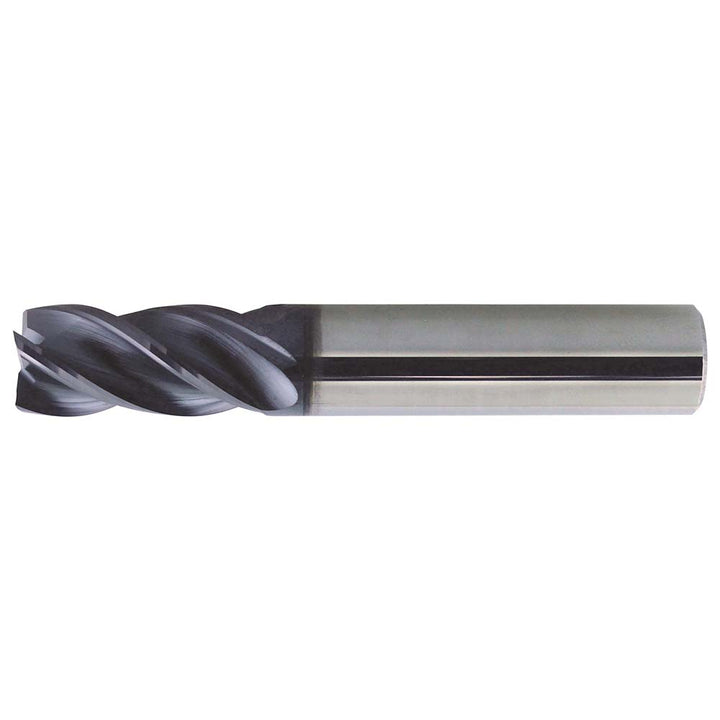

3/8" 4-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US007076

MFR# US007076Series US007

$62.61List $80.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US007076 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 7/8 length of cut, 3 overall length. Series US007.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35/38

Length of cut in7/8

Length of cut range0.8000 - 1.0000

Length typeStandard

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
