ProMax

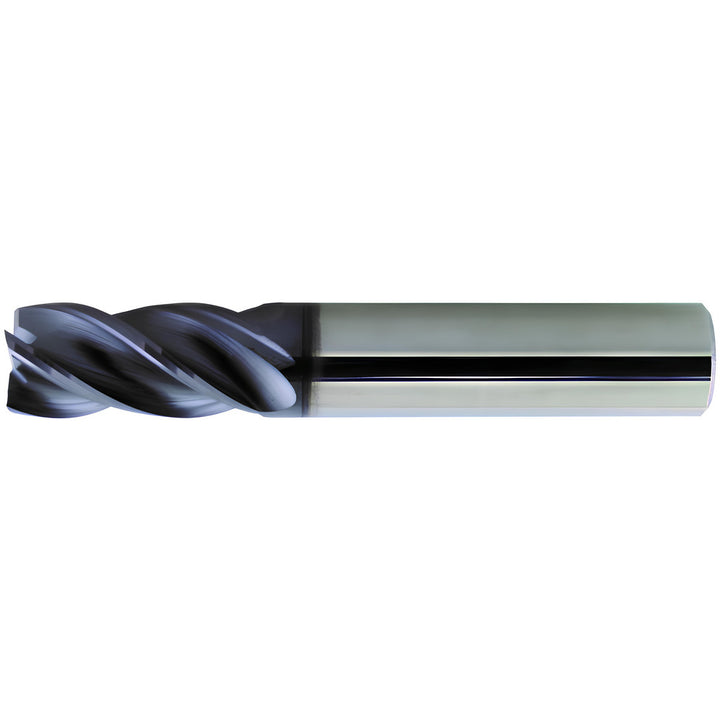

1/2" 4-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US007126

MFR# US007126Series US007

$89.20List $111.65 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US007126 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 1-1/4 length of cut, 3 overall length. Series US007.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Coolant throughNo

Corner radius0.0600

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in1-1/4

Length typeStandard

Manufacturers catalog numberUS007126

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes4

Overall length in3

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Shank diameter in1/2

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
