ProMax

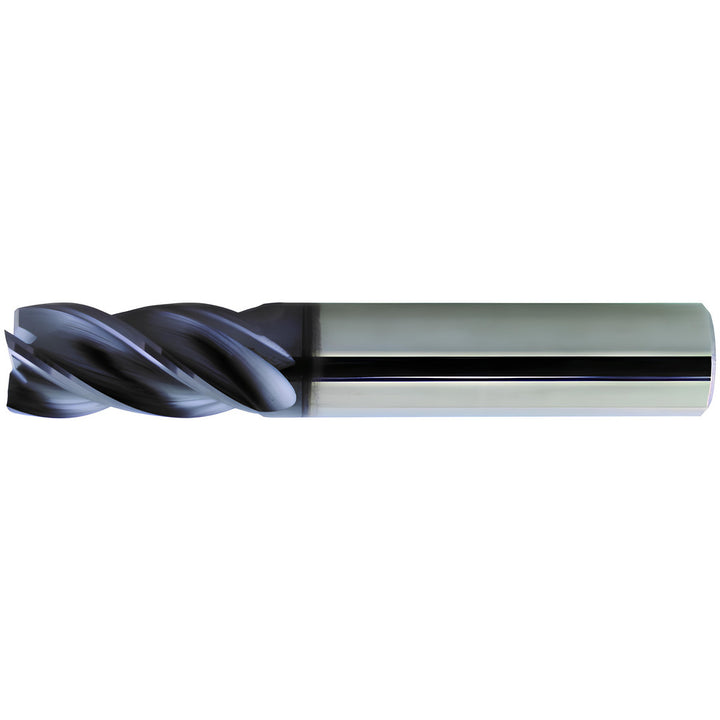

5/8" 4-Flute Solid Carbide Corner Radius End Mill, PowerLayer - ProMax US007282

MFR# US007282Series US007

$354.42List $444.27 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US007282 is a 5/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a PowerLayer finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 2 length of cut, 4-1/2 overall length. Series US007.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut in2

Length typeLong

Manufacturers catalog numberUS007282

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes4

Overall length in4-1/2

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal

Shank diameter in1

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
