SGS

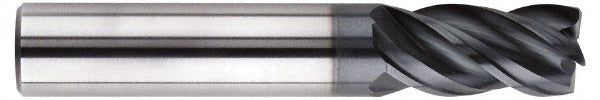

5/8" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36790
MFR# 36790Series ZD1C
$282.49List $362.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTX
Description
The SGS 36790 is a 5/8 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for cast iron, hard material. 3/4 length of cut, 5-1/2 overall length. Series ZD1C.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0400
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in3/4
Length typeShort
Material applicationCast Iron; Hard Material; Steel
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance-0.0020 to 0.0000 in
Neck diameter0.6100
Number of flutes4
Overall length in5-1/2
PitchNormal
Primary workpiece materialCast Iron; Hard Material
Reach length in3-1/4
Secondary workpiece materialSteel
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
