ProMax

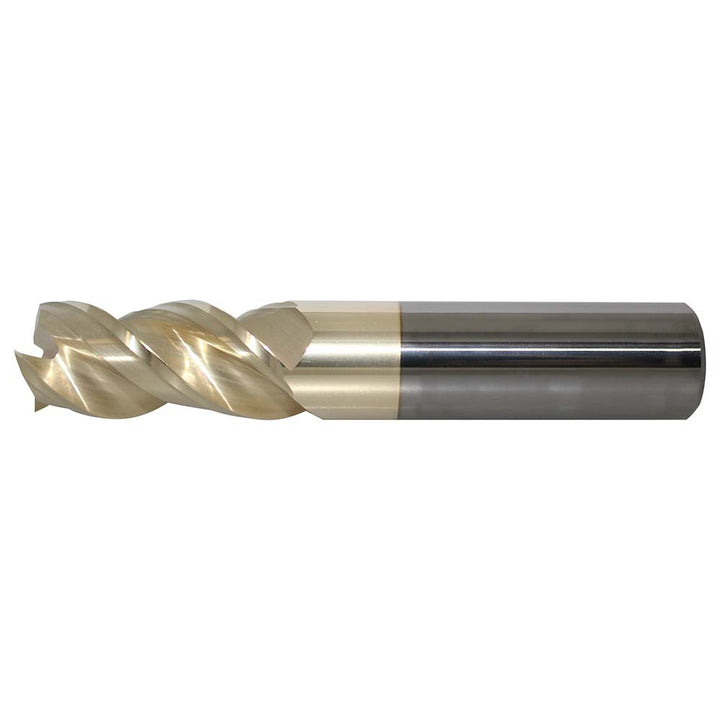

3/16" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362008

MFR# US362008Series US362

$32.74List $41.98 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The ProMax US362008 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. Suited for aluminum & non-ferrous. 3/4 length of cut, 2-1/2 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coating finish familyZrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle46-48

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeStandard

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes3

Overall length in2-1/2

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in3/16

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes
