ProMax
1/4" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362040
MFR# US362040Series US362
$40.70List $52.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingZrN
Description

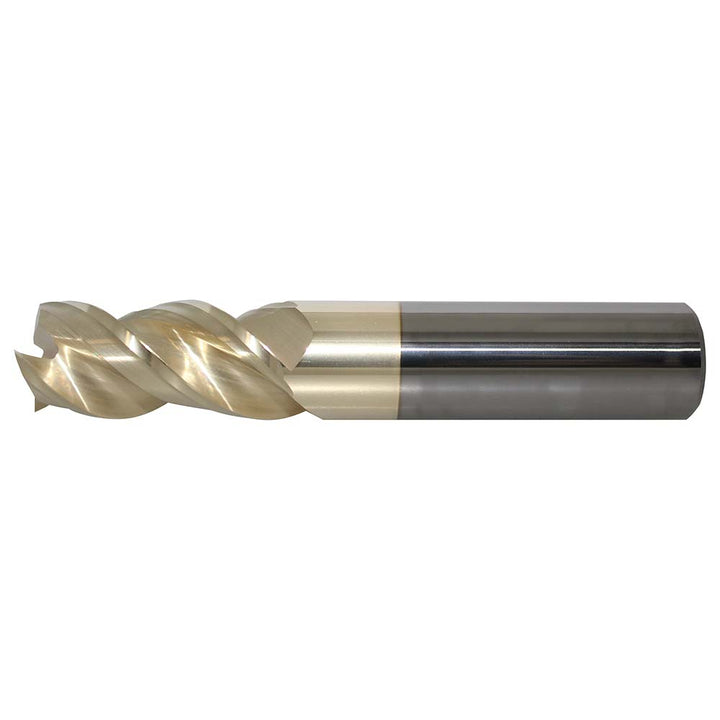

The ProMax US362040 is a 1/4 3-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series US362.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle46/48
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeStandard
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
