ProMax

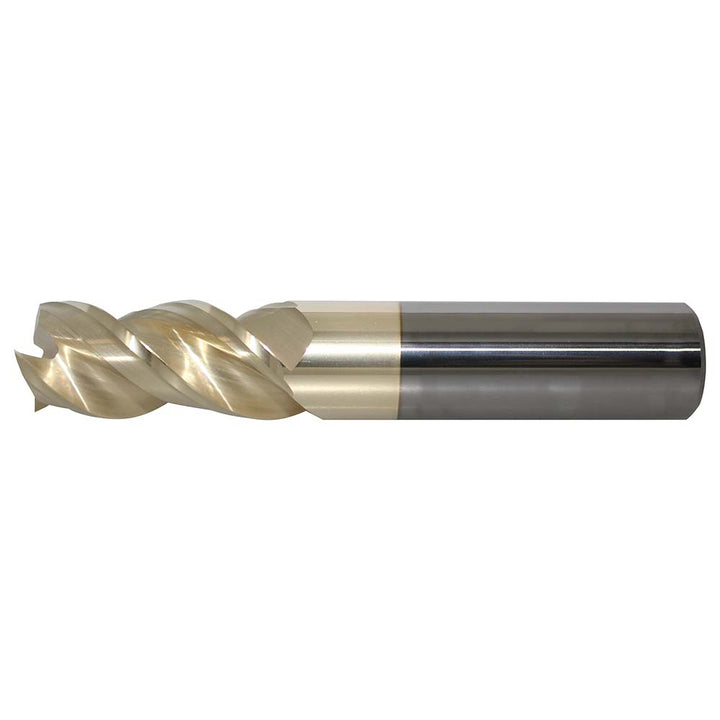

5/8" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362240

MFR# US362240Series US362

$114.41List $146.74 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The ProMax US362240 is a 5/8 3-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle46/48

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeStandard

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes3

Overall length in3-1/2

Shank diameter in5/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
