ProMax

3/8" 5-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US556095

MFR# US556095Series US556

$83.51List $107.10 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingPowerLayer

Description

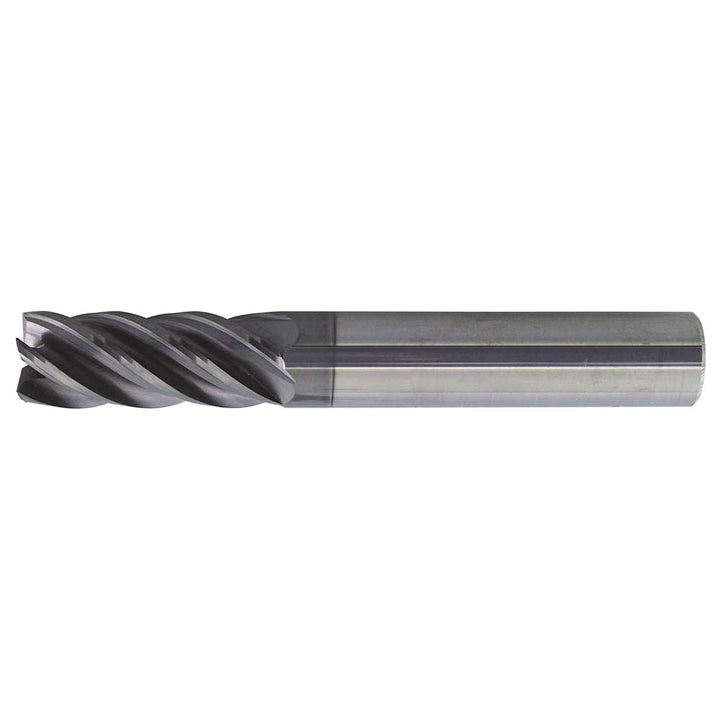

The ProMax US556095 is a 3/8 5-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 1-1/2 length of cut, 3-1/2 overall length. Series US556.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Length typeStandard

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes5

Overall length in3-1/2

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
