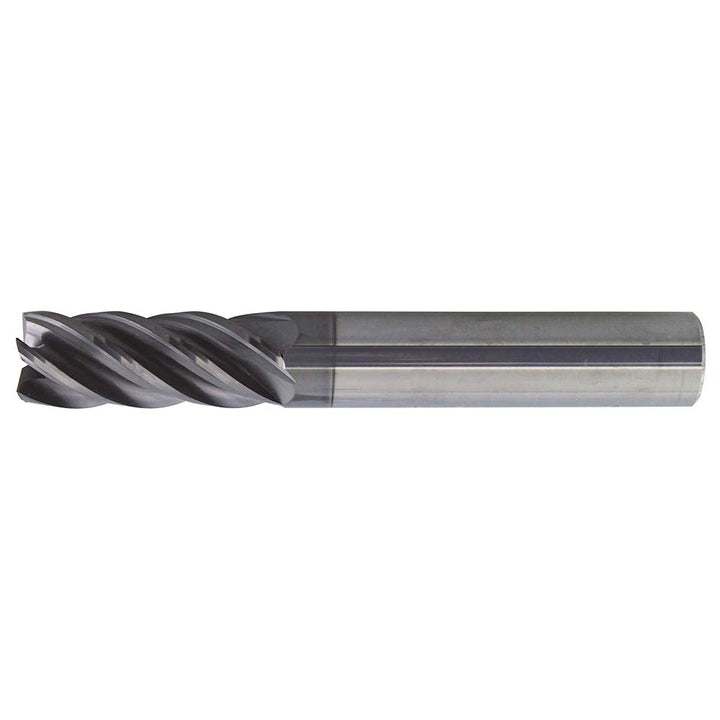

1/2" 5-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US556150

ProMax

1/2" 5-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US556150

MFR# US556150Series US556

$122.88List $154.86 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingPowerLayer

Description

The ProMax US556150 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 1-5/8 length of cut, 4 overall length. Series US556.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishPowerLayer
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeStandard
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in4
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
