ProMax

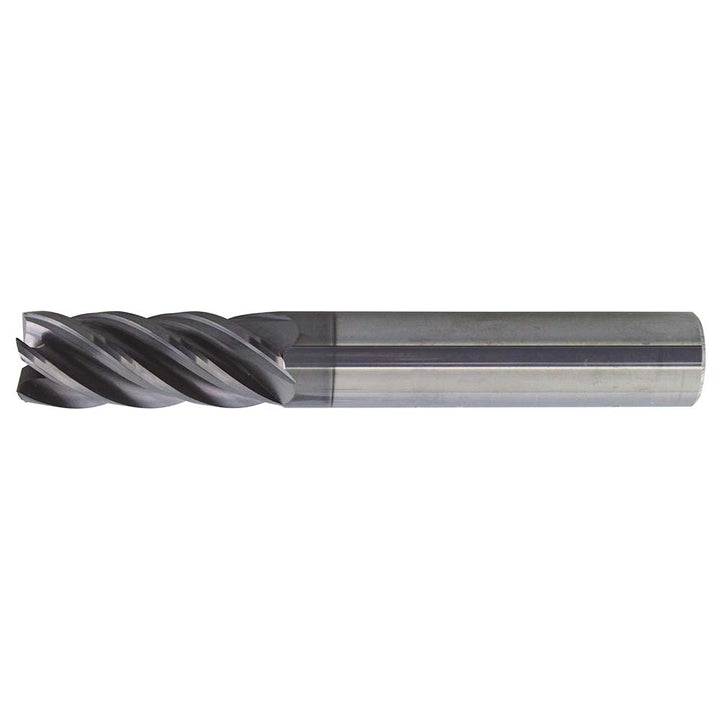

5/8" 5-Flute Solid Carbide Square End Mill, PowerLayer - ProMax US556199

MFR# US556199Series US556

$182.46List $234.02 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingPowerLayer

Description

The ProMax US556199 is a 5/8 5-flute Solid Carbide (Micrograin) square end mill with a PowerLayer finish for longer tool life. 2-1/2 length of cut, 5 overall length. Series US556.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPowerLayer

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in2-1/2

Length of cut range2.0000+

Length typeStandard

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes5

Overall length in5

Shank diameter in5/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
