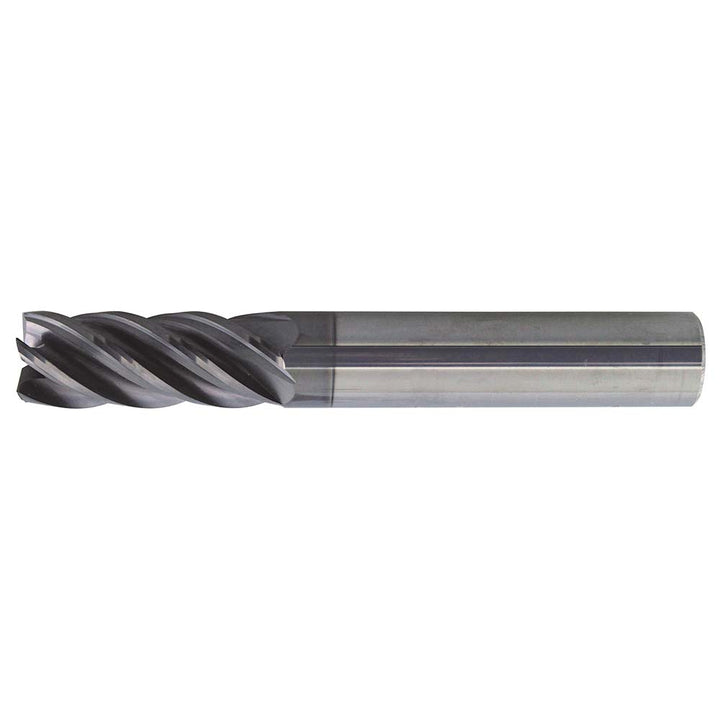

3/4" 5-Flute Solid Carbide Square End Mill - ProMax US556233

ProMax

3/4" 5-Flute Solid Carbide Square End Mill - ProMax US556233

MFR# US556233Series US556

$214.71List $275.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide

Description

The ProMax US556233 is a 3/4 5-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 4 overall length. Series US556.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeStandard
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in4
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
