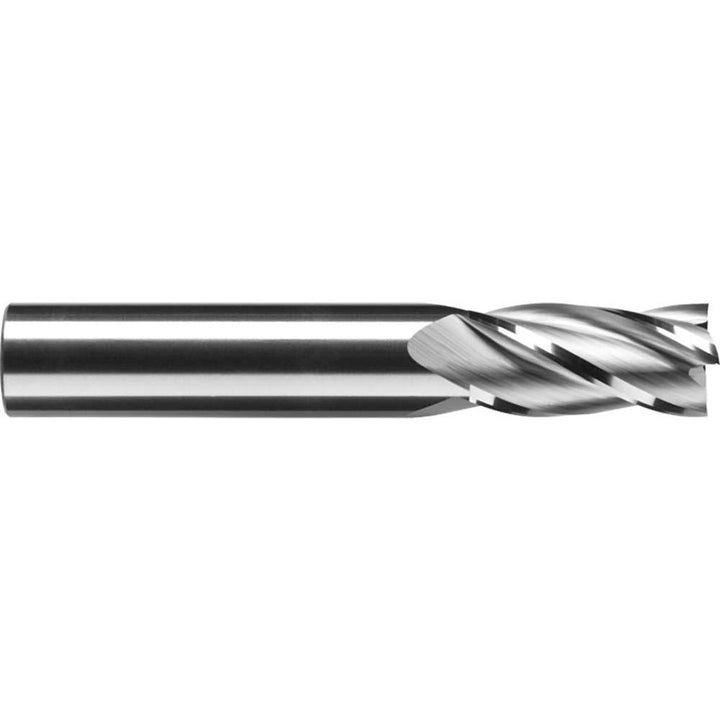

9/16" 4-Flute Solid Carbide Square End Mill - RobbJack C1-401-18

RobbJack

9/16" 4-Flute Solid Carbide Square End Mill - RobbJack C1-401-18

MFR# C1-401-18Series C1-401

$187.39List $203.72 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes4
MaterialSolid Carbide

Description

The RobbJack C1-401-18 is a 9/16 4-flute Solid Carbide (C2) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series C1-401.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material gradeC2
Mill diameter in9/16
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in3-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in9/16
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
