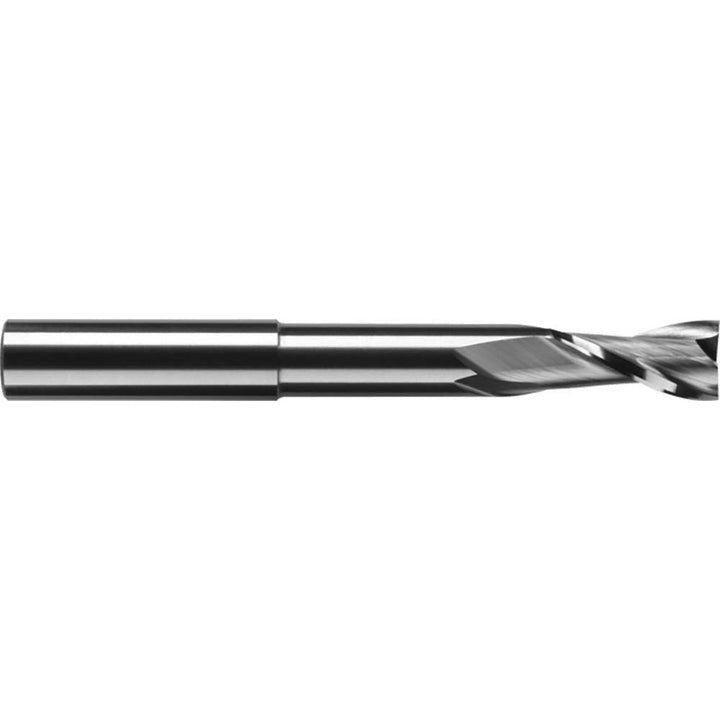

1/4" 2-Flute Solid Carbide Square End Mill - RobbJack EX-204-08
MFR# EX-204-08Series EX-204
$105.33List $114.51
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
Description
The RobbJack EX-204-08 is a 1/4 2-flute Solid Carbide (Tuffy) square end mill. 5/8 length of cut, 3 overall length. Series EX-204.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeExtra Long
Material gradeTuffy
Mill diameter in1/4
Mill diameter tolerance+0.001/-0.000 in
Number of flutes2
Overall length in3
Overall length tolerance+0.060/-0.060 in
Reach length in2
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
