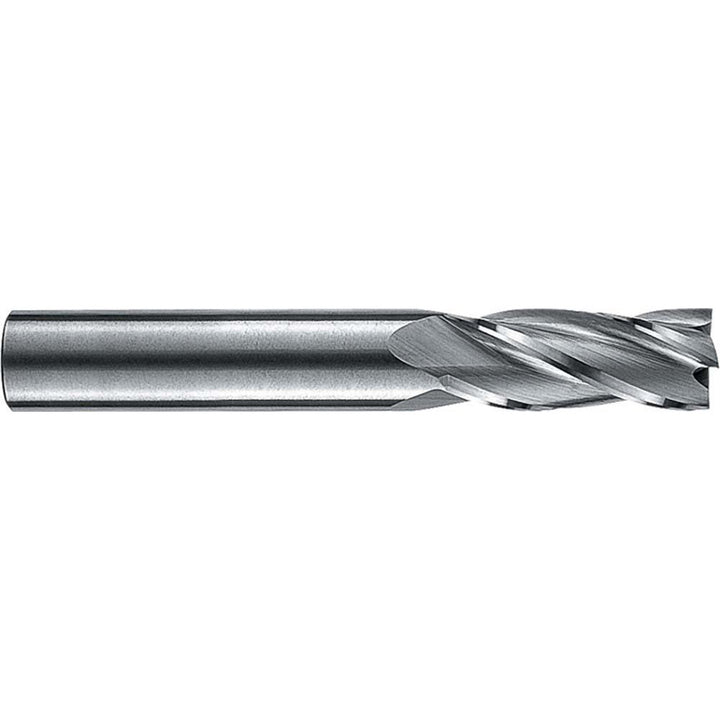

9/64" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-04.5

RobbJack

9/64" 4-Flute Solid Carbide Square End Mill - RobbJack NR-404-04.5

MFR# NR-404-04.5Series NR-404

$36.61List $40.00 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide

Description

The RobbJack NR-404-04.5 is a 9/64 4-flute Solid Carbide (C2) square end mill. 1/2 length of cut, 2 overall length. Series NR-404.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeC2
Mill diameter in9/64
Mill diameter tolerance+0.001/-0.000 in
Number of flutes4
Overall length in2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
