RobbJack
3/8" 3-Flute Solid Carbide Square End Mill - RobbJack S1-301-12
MFR# S1-301-12Series S1-301
$58.26List $63.65
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
Description

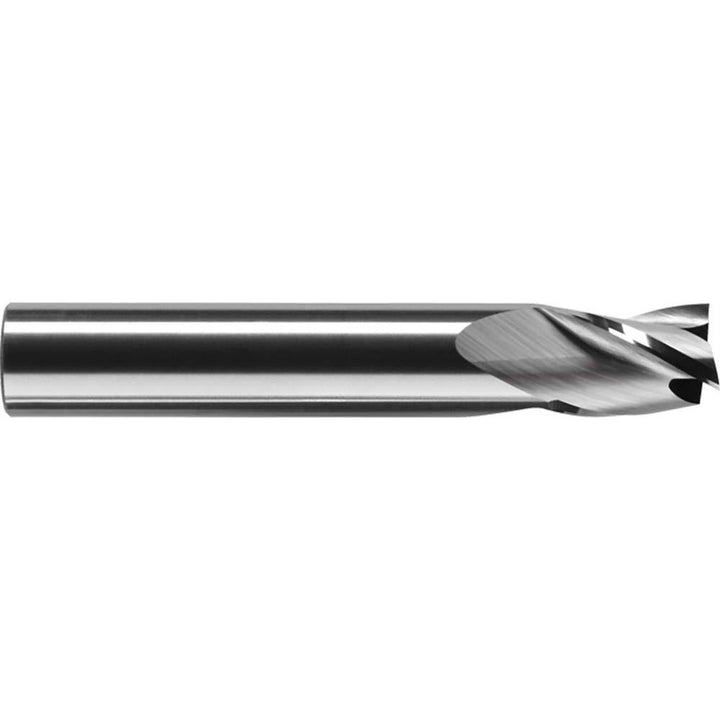

The RobbJack S1-301-12 is a 3/8 3-flute Solid Carbide (C2) square end mill. 5/8 length of cut, 2-1/2 overall length. Series S1-301.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeStub
Material gradeC2
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes3
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
