9/64" 4-Flute Solid Carbide Square End Mill - RobbJack T12-405-04.5

RobbJack

9/64" 4-Flute Solid Carbide Square End Mill - RobbJack T12-405-04.5

MFR# T12-405-04.5Series T12-405

$78.03List $85.25 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide

Description

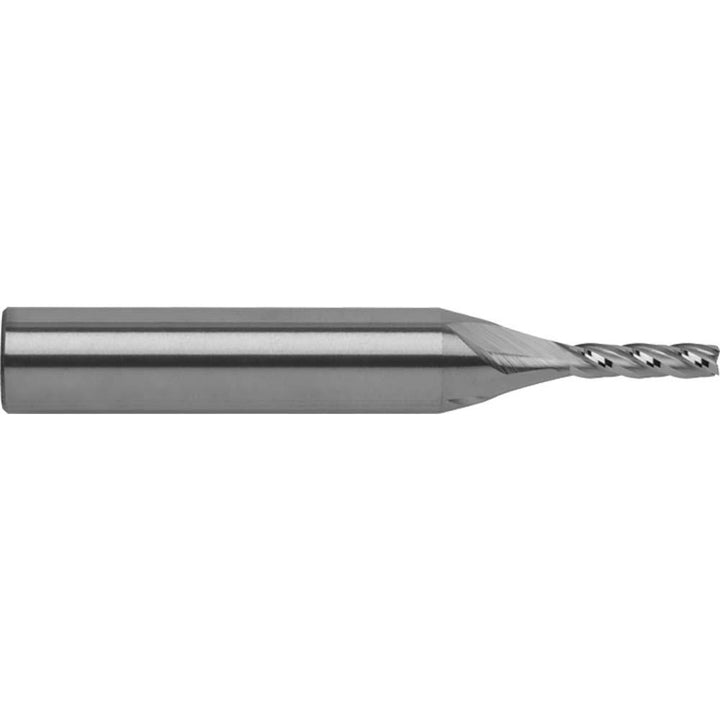

The RobbJack T12-405-04.5 is a 9/64 4-flute Solid Carbide (Tuffy) square end mill. 1/2 length of cut, 2-1/2 overall length. Series T12-405.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeTuffy
Mill diameter in9/64
Mill diameter tolerance+0.001/-0.000 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
