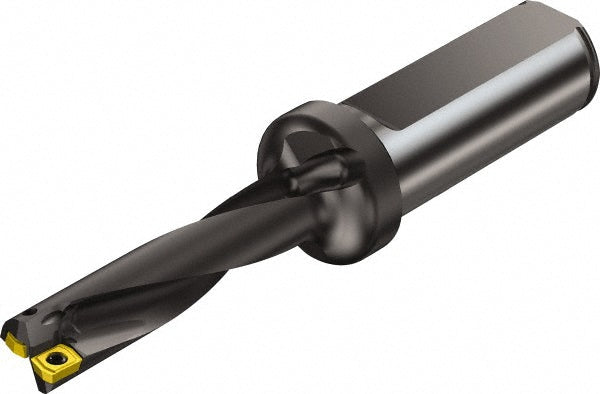

Indexable Drilling - Sandvik Coromant 5765201
MFR# 5765201Series CoroDrill 880
$803.11List $853.20
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765201 indexable drilling. Series CoroDrill 880.
Specifications
Body length3.2161
Compatible drill style880
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length2.5197
Insert compatibility880-020204H-C-GM; 880-0202W04H-P-GM
Maximum drill depth2.6378
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.7874
Number of drill inserts2
Shank diameter0.7874
Shank length1.9685
Shank typeFlange
Tool materialSteel
