Sandvik Coromant

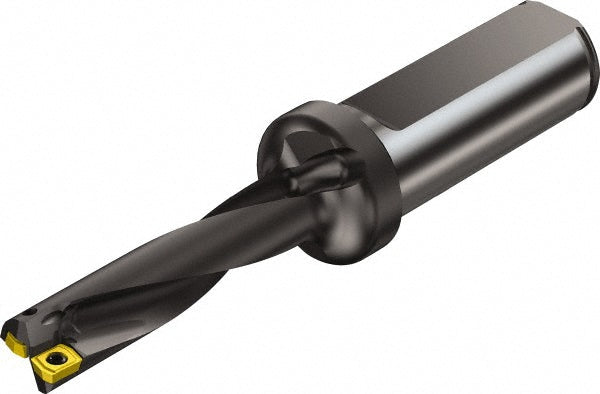

Indexable Drilling - Sandvik Coromant 5765317
MFR# 5765317Series CoroDrill® 880
$847.84List $900.72
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765317 indexable drilling. Series CoroDrill® 880.
Specifications
Body length3.2283
Compatible drill style880..L-04
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length3.6732
Insert size0.1024
Maximum drill depth3.2091
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter0.7913
Number of drill inserts2
Shank diameter0.9843
Shank length2.2047
Shank typeStraight-Cylindrical
Tool materialSteel
