Sandvik Coromant

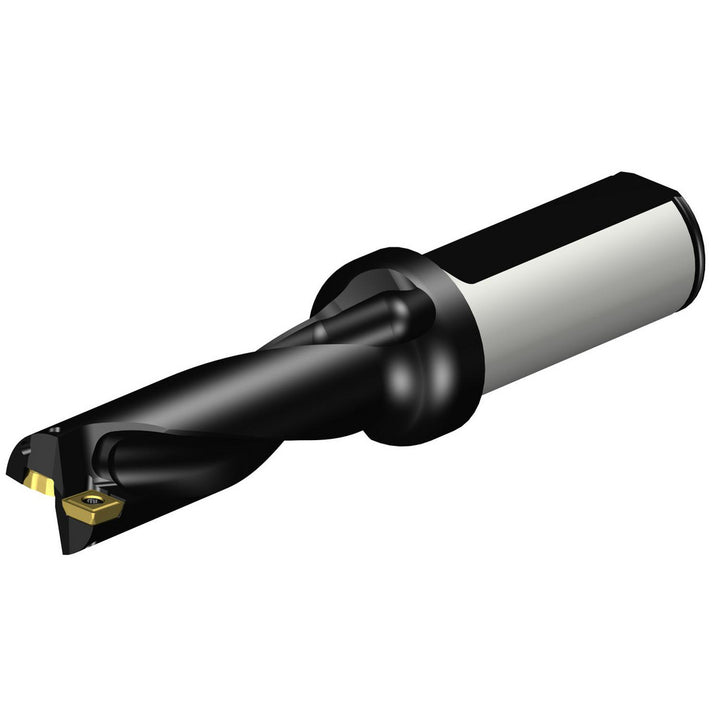

Indexable Drilling - Sandvik Coromant 5765384
MFR# 5765384Series CoroDrill 880
$766.36List $800.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765384 indexable drilling. Series CoroDrill 880.
Specifications
Body length3.2898
Compatible drill style880
Compatible insert size code040305; 0403W05
Compatible insert style880
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length2.4803
Insert compatibility880-040305H-C-GM; 880-0403W05H-P-GM
Insert lock screw5513 020-58
Insert size (mm)6.80; 7.40
Maximum drill depth2.5984
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.9843
Number of drill inserts2
Shank diameter0.9843
Shank length2.2047
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
