Sandvik Coromant

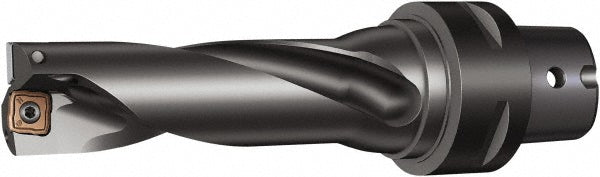

Indexable Drilling - Sandvik Coromant 5765454
MFR# 5765454Series CoroDrill 880
$892.56List $948.24
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765454 indexable drilling. Series CoroDrill 880.
Specifications
Body length4.5866
Collar diameter (mm)44.00
Compatible drill style880
Compatible insert size code050305; 0503W05
Compatible insert style880
Coolant entry style code3- Axial Concentric & Radial
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length2.8347
Insert compatibility880-050305H-C-GM; 880-0503W05H-P-GM
Insert lock screw5513 020-57
Insert size (mm)8.40; 8.90
Maximum drill depth2.9921
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.9449
Modular connection sizeC6
Number of drill inserts2
Shank diameter (mm)63.00
Shank length1.5159
Shank typeModular Connection
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
