Sandvik Coromant
Indexable Drilling - Sandvik Coromant 5765513
MFR# 5765513Series CoroDrill 880
$951.82List $993.60
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

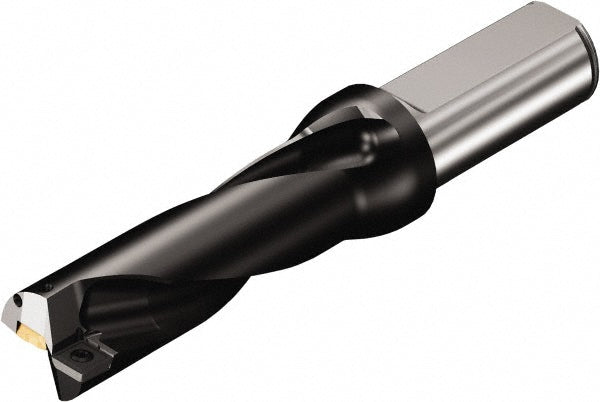

The Sandvik Coromant 5765513 indexable drilling. Series CoroDrill 880.
Specifications
Body length4.2701
Compatible drill style880
Compatible insert size code050305; 0503W05
Compatible insert style880
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.3071
Insert compatibility880-050305H-C-GM; 880-0503W05H-P-GM
Insert lock screw5513 020-57
Insert size (mm)8.40; 8.90
Maximum drill depth3.4252
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.2598
Number of drill inserts2
Shank diameter1.2598
Shank length2.3622
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
