Sandvik Coromant

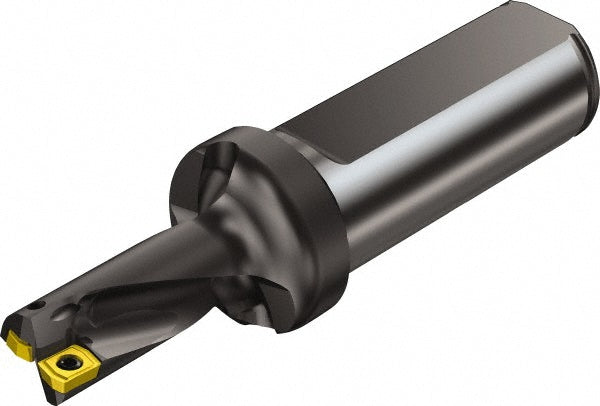

Indexable Drilling - Sandvik Coromant 5765529
MFR# 5765529Series CoroDrill 880
$1,218.75List $1,272.24
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5765529 indexable drilling. Series CoroDrill 880.
Specifications
Body length5.3622
Compatible drill style880
Compatible insert size code080508; 0805W08
Compatible insert style880
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length3.8583
Insert compatibility880-080508H-C-GM; 880-0805W08H-P-GM
Insert lock screw416.1-834
Insert size (mm)14.90; 15.50
Maximum drill depth4.0551
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter1.9291
Number of drill inserts2
Shank diameter1.5748
Shank length2.7559
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
