Sandvik Coromant

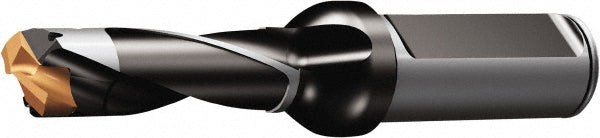

Indexable Drilling - Sandvik Coromant 6035626
MFR# 6035626Series CoroDrill 870
$400.54List $425.52
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035626 indexable drilling. Series CoroDrill 870.
Specifications
Body length1.5748in
Compatible insert style870-1190-9-PM
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.0146
Insert seat size9
Maximum drill depth1.4890
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.4720
Minimum drill diameter0.4528
Overall length3.9764in
Shank length1.8898in
Shank typeStraight-Cylindrical
Toolholder style870 LX-3
Tool materialSteel
