Sandvik Coromant
Indexable Drilling - Sandvik Coromant 6035663
MFR# 6035663Series CoroDrill 870
$514.19List $536.76
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

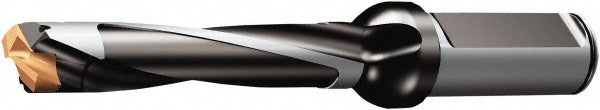

The Sandvik Coromant 6035663 indexable drilling. Series CoroDrill 870.
Specifications
Body length2.9134in
Compatible insert style870-1390-13-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length3.3410
Insert seat size13
Maximum drill depth2.8390
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5508
Minimum drill diameter0.5315
Overall length5.3150in
Shank length1.8898in
Shank typeStraight-Cylindrical
Toolholder style870 LX-5
Tool materialSteel
